Adding images to the Collections Browser hierarchy

Images can be added to any node that will appear in the online Collections Browser hierarchy by using the Thesaurus Editor to add a fact to the underlying concept as in the following example.

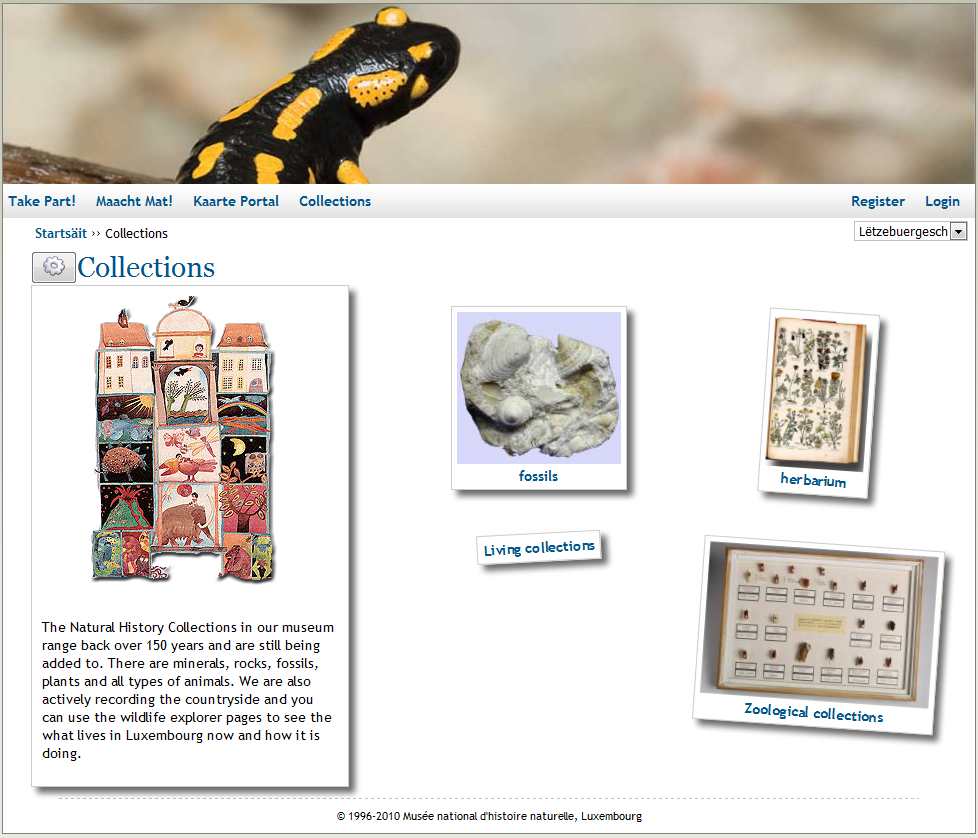

Images displayed for a term in the online Collections Browser

For best results a single image should be added to each and every node that appears in the online Collections Browser. If adding an image to any term that originates from the Webstructure list then add the image as a fact in that list. For images that appear for terms which originate in one of the taxon group specific lists (e.g. the Vertebrates list in the previous example) then you should add the fact to the taxon group specific list within the Weblists domain (e.g. the Vertebrates list). For the top level nodes of these lists, which are duplicated in the Webstructure list, please add the fact to the Webstructure list itself, e.g. the fact for the vertebrates image must go into the Webstructure list not the Vertebrates list. For images associated with any species level nodes, attach the fact to the species in whichever list in the Thesaurus contains the most up to date information for that taxon group.

Creating an image fact

When adding a fact for an image, set the following options:

  • Title - “Image”
  • Type - “webImage”
  • Data (HTML) - the file name of the image file
  • Language - not used, so set to “en - English”
  • Date - “Unknown”
  • Applies to - “All concepts that have the same meaning”

If any of this is not clear then the Collections node at the top of the Webstructure list itself provides an example.

Where to put the image file itself

The image file referred to by the fact must of course go into the correct place so that it can appear on the website. For the image to appear correctly on the live website, place it into E:\websites\drupal\sites\default\files\collections_browser on the SERV-DBTEST server, or the same location on SERV-DBTEST2 for the test version of the site.

Tip

There is no need to provide a thumbnail version of any of these images since the website automatically resizes them as it needs them. So, you just need to provide a single image which is at least as large as the largest version of the image the website will display. Therefore, for best results use images which are at least 300 pixels wide.
